[Solved]: Problems with virtual keyboards

Postby tavasti » Sat Mar 30, 2019 4:20 pm

I'd like to have virtual midi keyboard on my laptop, but unfortunately I can't get them working.

Tried this far:

- jack midi mode is seq
- started mixbus
- Launched jack-keyboard to mixbus track, pressing keys doe not show any midi event on mixbus

Tried also vmpk, and launched also a2jmidid, and made connections, but no any midi events from there any better.

Ideas?
Last edited by tavasti on Sun Mar 31, 2019 3:33 pm, edited 1 time in total.
Linux veteran & Novice musician

Hear my music at https://audiu.net/users/tawaste

User avatar
Linuxmusician01
Established Member
Posts: 429
Joined: Mon Feb 23, 2015 2:38 pm
Location: Holland

Re: Problems with virtual keyboards

Postby Linuxmusician01 » Sat Mar 30, 2019 5:08 pm

Here's how I do it, example for Carla-Rack (I don't use Mixbus as a DAW):

  1. Start Jack (i.e. jackd -d alsa --device hw:1 &, I hate launching Jack via Qjackctl).
  2. Start Carla-rack.
  3. Start VMPK (= virtual midi piano keyboard).
  4. Open a virtual synthesizer in Carla-rack (e.g. a VST of the almighty Minimoog)
  5. Go to the "Patchbay" tab in Carla.
  6. Connect VMPK output to Carla Midi input (red in Carla = midi; blue = audio).
  7. Connect Carla's audio output to your systems playback input.

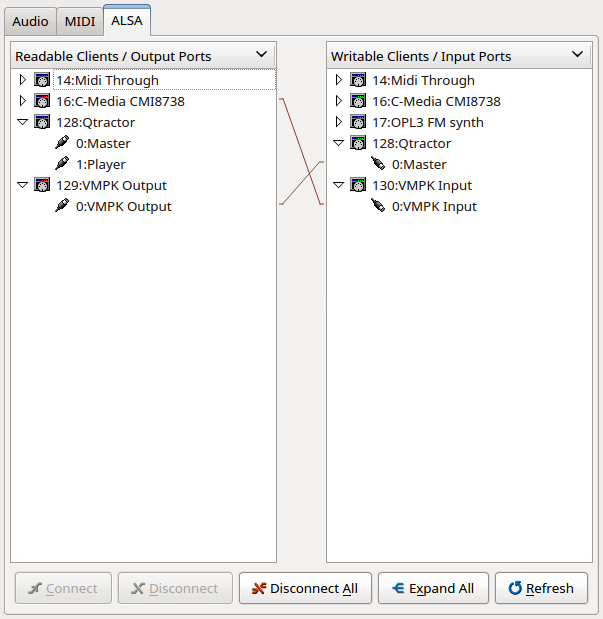

See picture below:

Example for Qtractor:

If you open a virtual synthsizer VST in (any?) DAW Qjackctl probably look like this:

Good luck in Mixbus! :)

tavasti
Established Member
Posts: 743
Joined: Tue Feb 16, 2016 6:56 am
Location: Kangasala, Finland
Contact:

Re: Problems with virtual keyboards

Postby tavasti » Sat Mar 30, 2019 5:12 pm

I know how to connect, and connections ok, but still no midi events...
Linux veteran & Novice musician

Hear my music at https://audiu.net/users/tawaste

User avatar
Linuxmusician01
Established Member
Posts: 429
Joined: Mon Feb 23, 2015 2:38 pm
Location: Holland

Re: Problems with virtual keyboards

Postby Linuxmusician01 » Sat Mar 30, 2019 7:20 pm

tavasti wrote:I know how to connect, and connections ok, but still no midi events...

Could you post a screenshot of Qjackctl?

User avatar
noedig
Established Member
Posts: 134
Joined: Wed Feb 12, 2014 4:39 am
Location: South Africa

Re: Problems with virtual keyboards

Postby noedig » Sun Mar 31, 2019 11:42 am

How are you checking for MIDI events in Mixbus?

Perhaps try to connect two instances of jack-keyboard together. When you press a note on one of them, you'll see the corresponding note pressed on the other.
If this does not work, something strange is up. Maybe restart the Jack server?

If this works, try with Ardour. If that works, try to find how you did it differently in Mixbus.

tavasti
Established Member
Posts: 743
Joined: Tue Feb 16, 2016 6:56 am
Location: Kangasala, Finland
Contact:

Re: Problems with virtual keyboards

Postby tavasti » Sun Mar 31, 2019 3:33 pm

Stupid user error: in Ardour / Mixbus, to react on midi input, track has to be set recording.
Linux veteran & Novice musician

Hear my music at https://audiu.net/users/tawaste
